Anderil Steel Fence Posts Co., Ltd. supplies square tube posts for welded wire fence systems, offering galvanized and powder-coated finishes. Available in sizes like 40x40mm, 50x50mm, and 60x60mm, these steel posts ensure strength, corrosion resistance, and easy installation for residential, commercial, and industrial perimeter fencing applications. Custom lengths available.
Characteristical
- Application: Residential fencing, commercial fencing, farm fencing, industrial perimeter fencing
- Installation: Direct burial, flange base, or surface mount with anchors
- Packaging Standard: Steel pallet with plastic wrap
- Custom: Bundled with steel straps, corner protectors for export
- End Treatment Types: Open-end, plastic cap, welded cap, dome cap
- Optional : Pre-drilled holes for bolt-through panels, welded base plate, anti-vandal cover
Standard Dimensions (Outer Width × Wall Thickness × Length)
| Size (mm) | Thickness (mm) | Length (m) |
| 40 × 40 | 1.2–2.5 | 1.8, 2.1, 2.4, 2.7, 3.0 |
| 50 × 50 | 1.5–3.0 | 1.8, 2.1, 2.4, 3.0, 3.6 |
| 60 × 60 | 1.5–3.5 | 2.0, 2.4, 3.0, 4.0 |
| 75 × 75 | 2.0–4.0 | 2.4, 3.0, 4.0 |
| 100 × 100 | 3.0–5.0 | 2.5, 3.0, 4.0, 5.0 |
96″ In-ground Steel Fence Post 2″ Square for Welded Fence
- Length: 96 inches (8 feet / 2438 mm)
- Outer Width: 2 inches × 2 inches (50.8 mm × 50.8 mm)
- Wall Thickness: standard-1.65 mm, heavy duty-2.54 mm
- Bottom End: open for direct burial
- Top End: plastic cap, welded flat cap (optional)
Galvanized 1300mm Flanged Square Tube Post With Base Plate
- Post Height: 1300 mm (1.3 meters)
- Outer Width: 50 mm × 50 mm (2″ × 2″)
- Wall Thickness: 1.5mm, 2.0mm, or 2.5mm
- Base Plate Dimensions: 120 mm × 120 mm × 5 mm
- Hole Pattern: 4 holes Ø12 mm (one in each corner)
- Top End: Plastic cap
- Bottom End: Welded flange base for anchor bolt fixing
4″ X 4″ Black Steel Square Post,104 Inches Long,1/4 Inch Thick
- Type: Heavy-Duty Steel Fence Post
- Shape: Square Tube (SQ)
- Finish: Black Painted or Powder Coated
- Outer Width: 4 inches × 4 inches (101.6 mm × 101.6 mm)
- Wall Thickness: 1/4 inch (6.35 mm)
- Post Length: 104 inches (8 feet 8 inches / 2642 mm)
- Top Open End: Welded cap or plastic cap (optional)
- Bottom End: Open for in-ground installation, optional welded base plate for surface mounting
- Installation In-Ground: Direct burial (typically 24–36 inches underground)
- Surface Mount: Optional flange base plate with anchor bolts
8 Ft 4″ X 4″ 14 Gauge Square Tube Post For Fencing
- Shape: 4-Inch Square Steel Fence Post
- Outer Width: 4″ × 4″ (101.6 mm × 101.6 mm)
- Wall Thickness: 14 Gauge (0.083″ / 2.11 mm)
- Post Length: 96 inches (8 feet / 2438 mm)
- Coating Options: Powder Coated (Black, Green, White, Gray)
Heavy Duty Square Tube Galvanized Steel Gate Fence Post Specifications
| Category | 1-1/2 in. Square Tube (Gate Frame Stick) | 2-1/2 in. Square Tube (Standard Post) |
|---|---|---|
| Material | Galvanized Steel | Galvanized Steel |
| Shape | Square Tube | Square Tube |
| Coating | Hot-Dip Galvanized | Hot-Dip Galvanized |
| Outside Dimension | 1-1/2 in. (38.1 mm) | 2-1/2 in. (63.5 mm) |
| Wall Thickness | 16 gauge = 0.065 in. (1.65 mm) | 1/16 in. (1.59 mm) |
| Length | 24 ft (7.32 m) full stick | Cut lengths (common: 8 ft, 10 ft, 12 ft) |
| Application | Gate Frames, Long Span Gate Sticks | Fence Posts, Heavy Gate Frames, Structural Posts |
Photograph

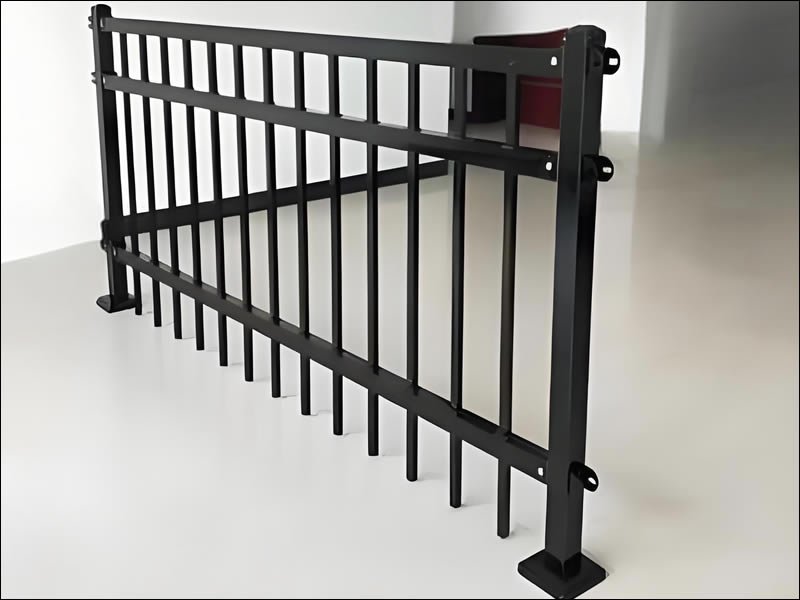

Black Square Tube Fence Post Powder Coated for Metal Fencing
Heavy Duty Square Tube Post for Industrial and Farm Use

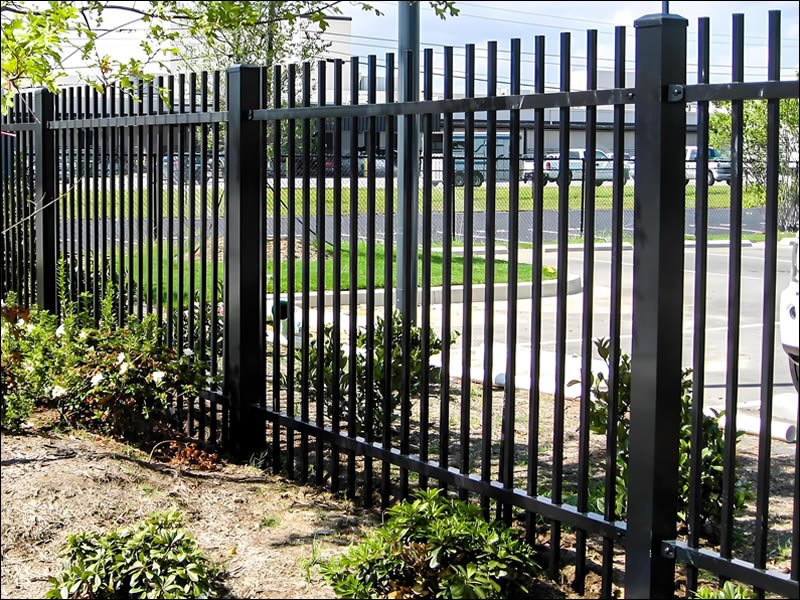

Black Square Pipe Fence Post 3×3 Inch Steel Tube for Boundary Fence
Square Tube Metal Post for Residential and Commercial Fencing
Galvanized Square Steel Post 2×2 Inch Hollow Section for Parking Lot and Road Barriers
Steel Square Tube Fence Post for Welded Wire and Chain Link Fence
