Aluminum Steel Fence

Aluminum Steel Fence Ideal for Public Parks, Schools, and More

Typical dimensions include panel height 1.2 m to 2.4 m and panel width 2.0 m to 3.0 m. Picket size is usually 16 mm × 16 mm to 25 mm × 25 mm, and rail size ranges from 32 mm × 32 mm to 45 mm × 45 mm. Post height varies from 1.5 m to 2.7 m, post size between 50 mm × 50 mm and 75 mm × 75 mm, and wall thickness is commonly 1.5 mm to 3.0 mm.

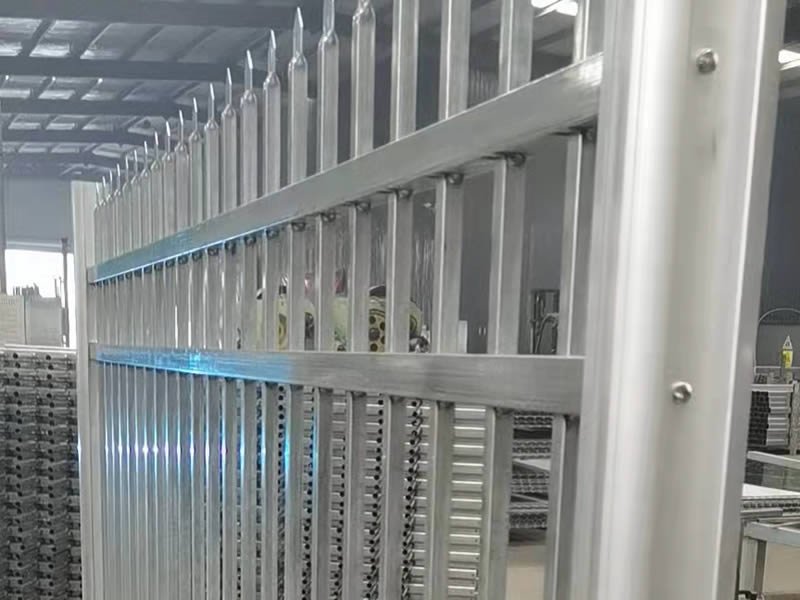

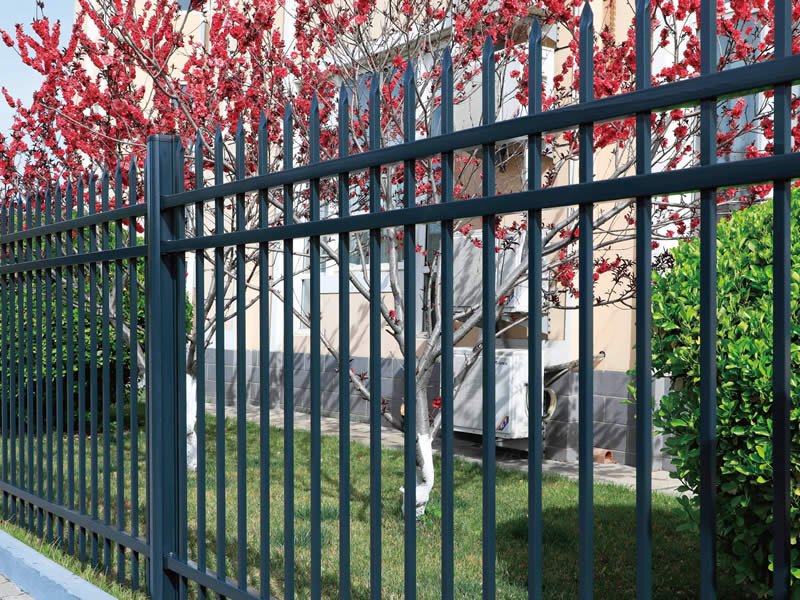

aluminum steel fence

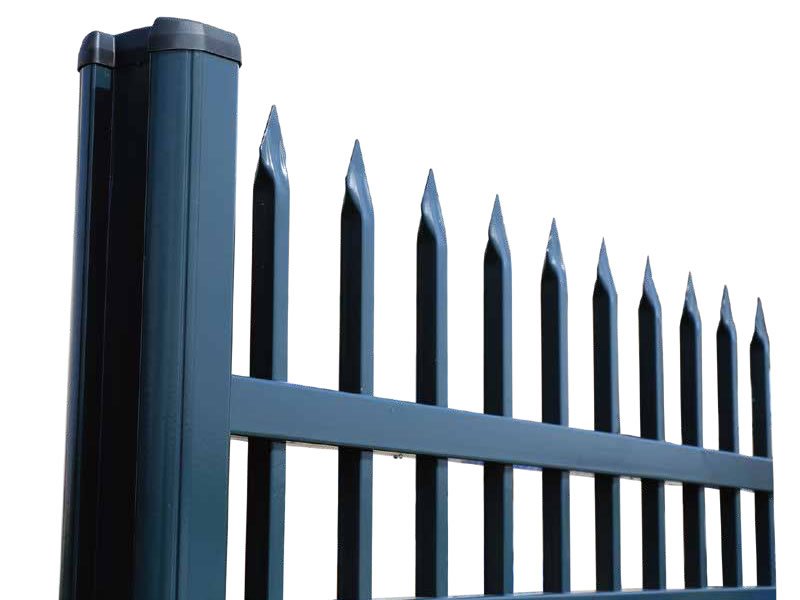

Aluminum steel fence, also known as Aluminum steel picket fence, is a versatile and durable fencing solution designed for both aesthetic appeal and high security. This type of fence combines the strength of aluminum-magnesium alloy with advanced coating technologies, making it an ideal choice for a variety of applications.

Characteristics

  • Symmetrical Circular Arc Design: The elegant symmetrical circular arc shape, combined with reinforced grooves on the front and rear panels, ensures a consistent visual effect from both inside and outside the boundary.
  • Smooth and Delicate Surface: The fence adopts international advanced nano-ceramic and electrostatic powder coating technology, providing a smooth and delicate finish.
  • High-Strength Aluminum-Magnesium Alloy: This design ensures the fence has superior anti-corrosion properties and a long service life.

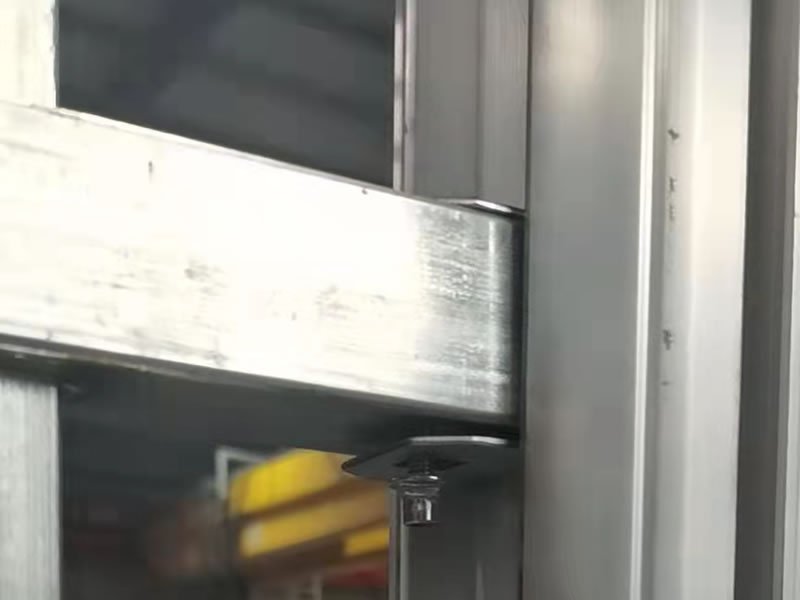

  • Anti-Theft Performance: The posts and fence pieces are connected by C-type fittings and stainless steel anti-theft bolts, enhancing the fence’s security features.
  • Ten-Year Anti-Corrosion Warranty: The advanced coating and material choice provide a decade-long guarantee against corrosion.

Specifications

  • Ordinary Posts:
    • Thickness: 1.5mm
    • External Dimensions: 75 x 100mm
    • Usage: Suitable for general protection with light two crossbar fence pieces.
  • Reinforced Posts:
    • Thickness: 2.0mm
    • External Dimensions: 75 x 100mm
    • Usage: Suitable for high-security areas with heavy-duty three crossbar fence pieces.

Applications

  • Residential Areas: Enhances security and aesthetic appeal around homes and gardens.
  • Public Parks and Schools: Provides safe and secure boundaries while maintaining an attractive appearance.
  • Commercial Properties: Offers a professional look while ensuring the safety of the premises.
  • Industrial Zones: Ensures robust protection for industrial facilities.
  • Prisons and Airports: Provides high-security fencing solutions for sensitive areas.
  • Government Buildings: Secures critical infrastructures with enhanced anti-theft features.
Width of railing (mm)Vertical Bar (mm)Cross Bar (mm)Rail NumberHeight of Railing (mm)Length of Post (mm)Post Section Size (mm)Distance between Posts (mm)
294920*20*1.040*40*1.52 / 312001700100*75*2.52500
15002000
18002300
20002500
40*40*1.22 / 312001700100*75*2.53000
15002000
18002300
20002500
